EKL 21908

for INTEL® Socket 775, 115X, 1200
Optimum cooling performance for INTEL® processors

Product description

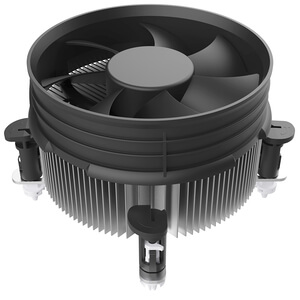

The EKL 21908 consists of an extrusion profile and dissipates the heat from your processor ideally and reliably. Thanks to its compact height of just 60 mm, this cooler is ideal for all compact PC systems, workstations or even normal office PCs. The built-in fan has a 4-pin connection and can therefore be controlled manually via the mainboard. This enables an adjustable speed range of 900-1800 rpm. Thanks to the existing PWM signal, the fan operates depending on the utilisation of the CPU.

Main features

  • Simple Intel ref. push-pin mounting
  • Dual mounting system for Intel Socket 775 / 115X
  • Cost-optimised aluminium design
  • High-performance thermal paste
  • Quiet PWM-controlled 92 mm fan

Cooler properties

Retail article numberEKL 21908
Power loss95W TDP
MaterialAluminium
Weight386 g
Packaging unit18
suitable forINTEL® Socket 775
INTEL® Socket 115X
INTEL® Socket 1200

Fan properties

Speed min.900 U/min
Speed max.1800 U/min
WarehouseHydraulic bearing
Operating voltage12 VDC
Volume flow62.63 m³/h
Noise level min.17.8 dB(A)
Noise level max.14.3 dB(A)
Service life L1040000 h bei 40 °C

Dimensions

abmessungen seite abmessungen oben
