CPU cooler with fan for INTEL® socketCPU cooler for INTEL® socket

EKL 22205

35/65W TDP Premium Cooler for INTEL® Socket LGA 17XX / 1851

Optimum cooling performance for Intel® processors

Product description

With an extremely low height of just 30mm, the EKL 22205 is ideal for compact PC systems in the small form factor range. Especially in this size range, it is often difficult to procure a powerful and quiet CPU cooler. The EKL 22205 overcomes both challenges with flying colours. The combination of an aluminium profile with copper core, high-performance thermal compound and a low-vibration PWM-controlled fan guarantees quiet and extremely effective heat dissipation.
35W according to Intel specifications. 65W at intake temperature up to 40°C.

Main features

Powerful top-flow design
High-performance thermal paste
Quiet and low-vibration 80 mm PWM fan
Secure and stable screw mounting with included backplate for Intel® socket LGA 17XX

Cooler properties

Retail article number	22210021005
EAN Retail	4250280331011
Power loss	35/65¹W TDP
Material	Aluminium + copper
Weight	280 g
Packaging unit	32
suitable for	INTEL® Socket LGA 17XX / 1851

Fan properties

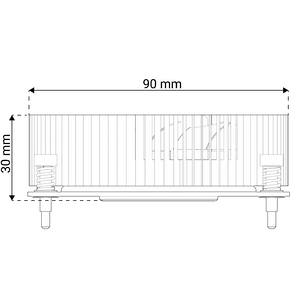

Width	90 mm
Length	90 mm
Height	30 mm
Speed min.	500 U/min
Speed max.	2700 U/min
Warehouse	Ball/slide bearing
Operating voltage	12 VDC
Volume flow	52.5 m³/h
Noise level min.	21 dB(A)
Noise level max.	35 dB(A)
Service life L10	40000 h bei 40 °C
